CWL50-M centrifugal extractor is a small-scale laboratory extraction equipment developed and produced by Zhengzhou Tiei Extraction. It is mainly used for product development in enterprise laboratories or extraction projects in colleges and universities. It can also be used for extraction test data before enterprises select industrial equipment. CWL50-M laboratory centrifugal extractor has a compact structure, simple and convenient operation, and can directly simulate multi-stage countercurrent extraction and multi-stage cross-current extraction processes using a small amount of feed liquid.
Working Principle of CWL50 Laboratory Centrifugal Extractor

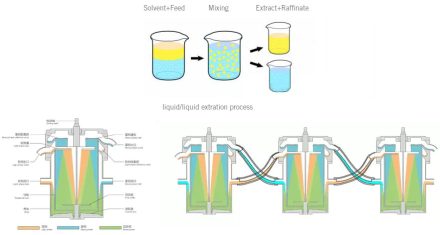

The centrifugal extractor is a new, fast and efficient liquid-liquid extraction and separation equipment. It uses a motor to drive the drum to rotate at high speed. Two immiscible liquids with different densities complete the mixing and mass transfer under the shear force generated by the rotation of the drum or blades, and are quickly separated under the centrifugal force generated by the high-speed rotation of the drum.
The two feed pipes at the bottom of the CWL50 laboratory centrifugal extractor are arranged symmetrically. When working, the heavy phase and the light phase enter from the feed pipe. There are two discharge pipes on the centrifugal extractor, and the top (highest) discharge pipe is the heavy phase discharge pipe. When the centrifuge is working, under the action of centrifugal force, the heavy phase is close to the outermost side of the drum, and the light phase is relatively close to the center of the drum, so that the two phases are separated under the action of centrifugal force.
From the appearance of CWL50 laboratory centrifugal extractor, it can directly see the motor, shell, inlet and outlet pipes, discharge valve, interstage pipelines, etc. The interstage pipelines are mostly made of PTFE transparent tubes for two reasons: one is that PTFE tubes are corrosion-resistant, and the other is that they are transparent, which can directly observe the movement of the liquid in the interstage pipelines and observe its discharge and feed, etc.
Features of CWL50 Laboratory Centrifugal Extractor
- Energy saving. Large processing capacity and more energy saving.
- Corrosion resistance. The equipment can be made of perfluorinated polymer materials, which are resistant to strong acid corrosion.
- Good mixing and separation effect. A variety of mixing structures are available, with good separation effect, which can be applied to systems that are easy to emulsify.
The above is an introduction to the CWL50-M laboratory centrifugal extractor. For more details about the laboratory centrifugal extractor, welcome contact our Tiei Extraction.
